环境

AutoCAD 机械版 2025
ObjectARX 2025
VS 2022（ISO C++14）

环境配置参考：https://blog.iyatt.com/?p=16480

实现

Ellipse.hpp

#pragma once
class Ellipse
{
public:
    static void work();

private:
    static void drawEllipse(AcDbEllipse* pEllipseObj);
};

Ellipse.cpp

#include "stdafx.h"
#include "Ellipse.hpp"

void Ellipse::drawEllipse(AcDbEllipse * pEllipseObj)
{
    AcDbBlockTable* pBlockTable = nullptr;
    acdbHostApplicationServices()->workingDatabase()->getBlockTable(pBlockTable, AcDb::kForRead);
    AcDbBlockTableRecord* pBlockTableRecord = nullptr;
    pBlockTable->getAt(ACDB_MODEL_SPACE, pBlockTableRecord, AcDb::kForWrite);
    pBlockTableRecord->appendAcDbEntity(pEllipseObj);
    pBlockTableRecord->close();
    pBlockTable->close();
}

void Ellipse::work()
{
    const AcGePoint3d center(10, 0, 0); // 中心
    const AcGeVector3d normal(0, 0, 1); // xy平面向量
    const AcGeVector3d majorAxis(50, 0, 0); // 长半轴矢量
    const double radiusRation = 0.5; // 短轴和长轴的比值
    AcDbEllipse* pEllipseObj = new AcDbEllipse(center, normal, majorAxis, radiusRation);
    Ellipse::drawEllipse(pEllipseObj);
    pEllipseObj->close();
}

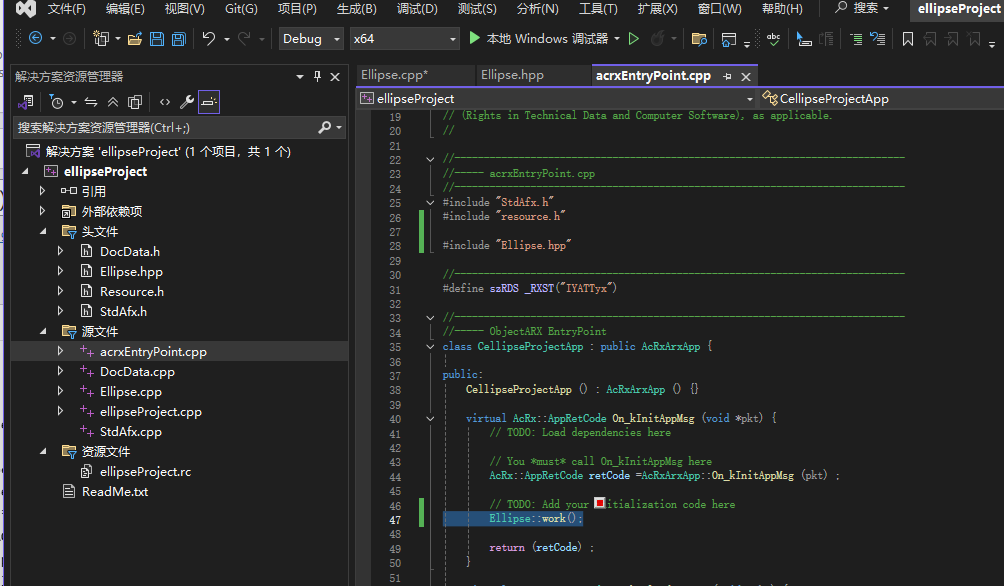

在 acrxEntryPoint.cpp 中引用头文件，并在 On_kInitAppMsg 方法里调用

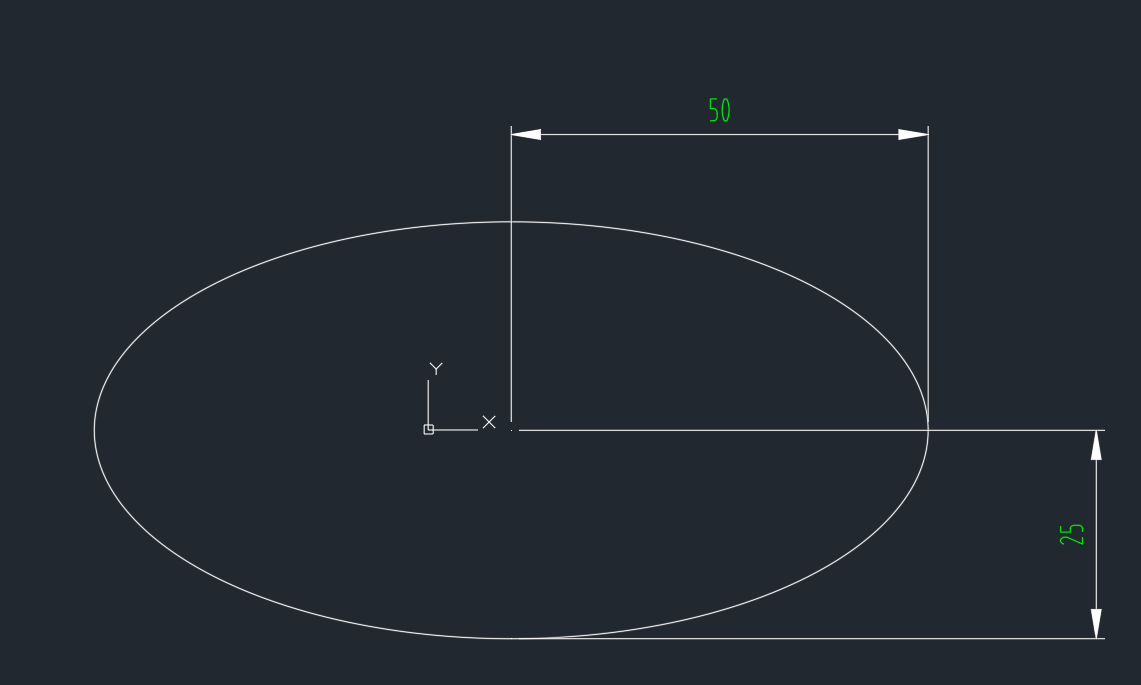

调试运行
